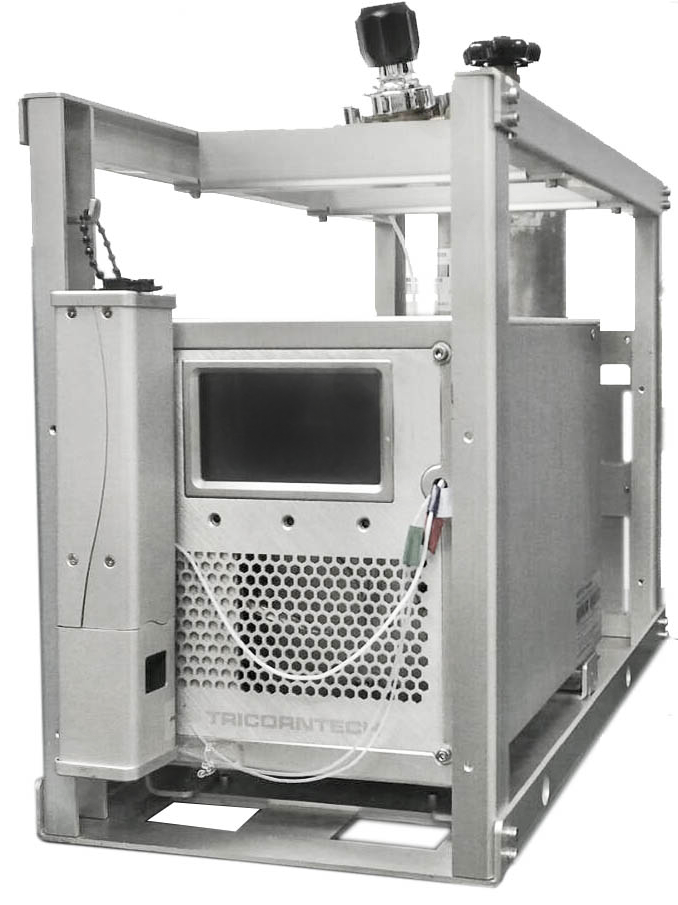

MiTAP UTLD Series
Advantages
» On-site detection for oil leakage contamination (LNAPL)
» MTBE、BTEX、Decane
» PID、Soil/Groundwater modes
» On-site detection for oil leakage contamination (LNAPL)
» MTBE、BTEX、Decane
» PID、Soil/Groundwater modes
-
Dimensions (H x W x D) 253 x 188 x 345 mm Weight 8.5 Kg Detection Capability Soil Measurement Mode List of VOCs (target) Methyl t-butyl Ether
Benzene
Toluene
Ethylbenzene
Xylene
N-decaneDetection Range 0-1000 ppmv (N-decane：0-300 ppmv) Groundwater Measurement Mode List of VOCs (target) Methyl t-butyl Ether
Benzene
Toluene
Ethylbenzene
XyleneDetection Range 0.01-5 mg/L User Interface Touch Screen 1 I/O Ports RJ45 1 Physical Requirement Dimensions (H x W x D) 253 x 188 x 345 mm Weight 8.5 Kg Electrical Specifications AC Input Voltage 85V ~ 264V AC AC Input Current 4.5A / 115VAC, 2.5A / 230VAC Current Frequency 47 / 63 Hz Environment Operation Temperature 10˚C ~ 40˚C Relative Humidity Operating: 0% ~ 80%.Non-condensing
Non-operating: 0% ~ 90%.Non-condensingWarranty 1 year Remark
